Functional Features

Product advantages:

Based on the advanced 8Gb framework, providing excellent performance, satisfying high-end apps’ strict requirement for storage system.

Intel chip-based independent XOR ASIC engine, independent cache control and data-caching design to fully unleash its performance.

Independent cache control and data-caching design to fully unleash its performance.

The design of highly modular redundant systematic framework to ensure it is reliable, ease to use and maintain. It is 99.999% reliable.

The design of redundant I/O channel and automated failover function ensure the consistency of data access.

Strong storage extension capacity, which can support more than 1PB.

Strong connects extension capacity, which can support as many as 1024 host computers.

Compatible to IBM AIX, HP-UX, Solaris, Windows, Linux and other host platforms, adaptive to complex application environment and strongly supportive to software and hardware.

The data application function based on storage system can fully realize the value of information:

The function of data snapshot can achieve data multiplexing and accelerate data backup and recovery.

The function of data replication can realize data distribution and migration, fully realize the value of information.

The function of data synchronization can support both synchronous and asynchronous methods, so as to ensure the data access consistency to the greatest extent.

The graphical management tools can realize powerful management functions.

Application graded storage concept, supporting 2.5-inch, 3.5-inch SAS, SSD hard disks.

The extension cabinet can be arranged according to user’s cabinet space, there are various options including 2U and 4U extension cabinet which can be flexibly arranged.

Support BBU+Flash.

Relevant software and its functions:

The Inspur AS1000G6 storage system management program AS SAN Manger provides direct graphic UI. Its powerful function can realize efficient storage system management and support various data application functions.

Features

The direct graphical managing windows of AS SAN Manger can realize comprehensive and flexible configuration and management of disk storage system.

Support many high-level management functions, including

Online storage extension function enables the quantity and capacity extension for drivers and logical volumes, etc. through various methods.

The online dynamic RAID level migration function can change the RAID level of volume group safely.

Volume sectional dynamic adjustment can change the size of volume sections according to application requirement.

The dynamic defragmentation function can efficiently manage the volume storage integrate the idle capacity in the volumes, so as to optimize the utilizing and storage efficiency.

Non-interruptible controller firmware updating

The direct diagnosis and recovering program provide important fault diagnosis assistance, which provides diagnosis and recovering procedures for faults in storage system.

High-level data application function

I. Isolated mapping of data volumes

The isolated mapping function for data volumes can create as many as 64 logical mapping relations and 2048 volumes (LUN) for Inspur AS1000G6 storage system. It can support different host computers, which enables the unity of storage in multi-platform environment. Its flexibility enables a series of host computers with different capacity, performance and data protecting requirement to share the single storage system efficiently. The isolating function of data volumes based on the storage system can only access data in the controller, which ensure the independence, consistency and integrity of data storage.

II. Data snapshot

The data snapshot function based on storage system can carry out timely logical copy of the volumes in the system, realize data multiplexing for backup, application testing, developing, information analysis or data mining. It enables the assisting server to access the snapshot of generated data. As a complete copy, this high capacity and efficiency snapshot volume can save the disk space efficiently. This function is also an optimal plan for online data backup and recovery, which enables fast data recovery.

III. Data replication function

This function can create a cloned volume (complete physical copy) of the existing data volume within the storage system. This cloned volume can be allocated to any host computer as the data copy of the original volume. The read-write operating of the cloned volume will exert no influence on the performance and data security of the original volume, which is the best resolution for data multiplexing and migration. In the process of creating cloned volume through data replication, all the parameters can be adjusted so as to ensure the full access of the original volume.

IV. Data remote synchronization function

The data remote synchronization protect the date by forming copies through constantly copying or mirroring local data into remote storage system. It is also the optimal solution to build remote backup and disaster recovery. The data remote synchronization supports various sync options, which is very flexible, allowing the administrator to optimize the data synchronization. The data remote synchronization supports synch, async and other synchronization modes, which enables dynamic mode switch. Data synchronization can be combined with data snapshot, so as to extend information multiplexing and value.

The advanced data application functions provided by AS1000G6 storage system can maximize its value for users on AS500H’s high-performance hardware platform.

Technical Specifications

Controller	Double controller

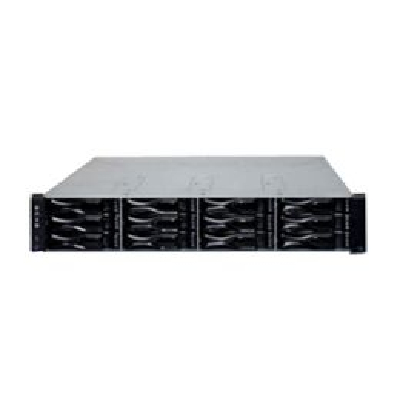

Host Computer	2U12 disk /2U24 disk
High-speed cache	12GB cache for each controller which can be upgraded to 24GB
Hard disk	SSD 、 SAS 、 NL-SAS
Hard disk No.	Support as many as 384 disks
Host interface	Standard configuration of eight 8Gb FC host interfaces Eight 8Gb FC host interfaces and four 40 Gb IB host interface option Eight 8Gb FC host interfaces + four 10 gigabit host interfaces option Sixteen 8Gb FC host interfaces option
Extension interface	2 SAS2.0 wide port
Extension cabinet	2U12 、 2U24 、 4U60
RAID level	0 ， 1 ， 3 ， 5 ， 6 ， 10
Advanced functions	SSD hard disk high-speed caching function Dynamic disk pool technology Automated streamline configuration Remote volume mirror image Volume copy Snapshot
Power failure protection	BBU+Flash cache data power failure protection
Chassis	552.5mmx482.6mmx86.4mm (length/width/height)
Working temperature	10—40 ℃
