- Place of Origin: China
- Brand Name: Inspur
- Model Number: NF8460M3
Product Description
I. Round Water tower Working condition :
Water inlet temperature:37°C
Water outlet temperature:32°C
Wet bulb temperature:28°C
Dry bulb tem peranure:31.8°C
Atmospheric pressure:9.94×10000Pa
Material: glass fiber reinforced plastic (GFRP)
II. Environmental choice
1, Should avoid installed in waterproof channel, easy to reflect the walls of volume, must be packed in roof or air circulation place.
2, With two or more cooling tower and, attention shall be paid to minus its spacing.
3, Should not be installed in all outer wall or tight place, and should pay attention to minus its exterior wall spacing.
4, Should avoid to install a soot and dust more places, the top jams film.
5, Should be far away from the kitchen and boiler room wait until a hot place.
III .Installation points
1, The foundation should level can't tilt, cooling tower in vertical lines not plane, or influence than motor cloth.
2, For the above 175 T cooling water pipe should be attuned in bearing.
3, Circulating water in and out of the shuttle, appropriate is used the shock absorber throat connection.
4, Cooling tower, clubs and column wall fan blade gap should be consistent and never allow two side there are a big gap and solve the problems found.
5, Motor and reducer to regularly check to fix, reducer should check the oil a.
IV .Technology parameter of Round Water tower :
Model
| Water flow | Fan diameter | Theoretical air | Motor power | Tower height | Tower diameter | Weight |
(m3/h) | (mm) | (m3/h) | (kw) | (mm) | (mm) | (kg) | |
XTM-8 | 8 | 584 | 4500 | 0.18 | 1560 | 930 | 64 |
XTM-10 | 10 | 584 | 5700 | 0.18 | 1670 | 1000 | 85 |
XTM-12 | 12 | 760 | 6800 | 0.37 | 1700 | 1100 | 94 |
XTM-15 | 15 | 760 | 9100 | 0.37 | 1780 | 1250 | 124 |
XTM-20 | 20 | 760 | 11300 | 0.37 | 1780 | 1400 | 158 |
XTM-25 | 25 | 760 | 15000 | 0.55 | 1780 | 1400 | 174 |
XTM-30 | 30 | 884 | 17000 | 0.75 | 1960 | 1620 | 185 |
XTM-40 | 40 | 884 | 21000 | 0.75 | 2010 | 1740 | 192 |
XTM-50 | 50 | 884 | 23000 | 1.1 | 2010 | 1840 | 215 |
XTM-60 | 60 | 1190 | 28000 | 1.1 | 2400 | 2200 | 412 |
XTM-70 | 70 | 1190 | 33000 | 1.5 | 2530 | 2200 | 476 |
XTM-80 | 80 | 1470 | 45000 | 2.2 | 2680 | 2500 | 680 |
XTM-90 | 90 | 1470 | 48000 | 2.2 | 2710 | 2500 | 730 |
XTM-100 | 100 | 1470 | 50000 | 2.2 | 2820 | 2900 | 776 |
XTM-125 | 125 | 1800 | 57000 | 4 | 3130 | 3300 | 954 |
XTM-150 | 150 | 1800 | 70000 | 4 | 3350 | 3300 | 1062 |
XTM-175 | 175 | 1800 | 85000 | 4 | 3670 | 3600 | 1468 |
XTM-200 | 200 | 1800 | 99000 | 4 | 3900 | 4000 | 1797 |
XTM-225 | 225 | 2400 | 113000 | 5.5 | 4165 | 4500 | 1987 |
XTM-250 | 250 | 2400 | 142000 | 5.5 | 4290 | 4500 | 2370 |
XTM-300 | 300 | 3000 | 171000 | 7.5 | 4435 | 4900 | 2495 |
XTM-350 | 350 | 3000 | 210000 | 11 | 4735 | 5300 | 2702 |
XTM-400 | 400 | 3400 | 228000 | 11 | 4820 | 6100 | 3592 |
XTM-450 | 450 | 3400 | 285000 | 15 | 4820 | 6100 | 3741 |
XTM-500 | 500 | 3700 | 342000 | 15 | 5145 | 6800 | 4276 |
XTM-600 | 600 | 3700 | 400000 | 18.5 | 5145 | 6800 | 4457 |
XTM-700 | 700 | 4200 | 456000 | 22 | 5732 | 8000 | 6167 |
XTM-800 | 800 | 4200 | 570000 | 22 | 5732 | 8000 | 6445 |

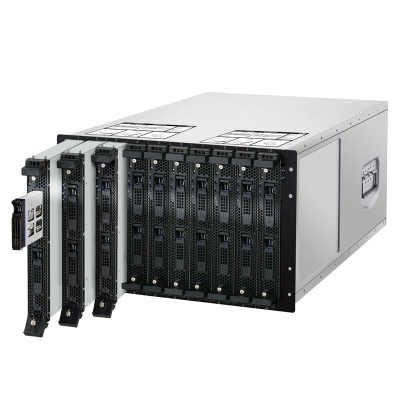

- Place of Origin: China
- Brand Name: Inspur
- Model Number: NF8460M3
Technical Specifications
Model | NF8460M3 |
Processor | Support 4 Intel ®Xeon® processor E7-4800 v2 and E7-8800 v2 processor |
Number of cores | 6C （ E7-4809 v2 、 E7-8893 v2 ） |
8C （ E7-4820 v2 ） | |
10C （ E7-4830 v2 、 E7-8891 v2 ） | |
12C （ E7-4850 v2 、 E7-4860 v2 、 E7-8850 v2 ） | |
15C （ E7-4870 v2 、 E7-4880 v2 、 E7-4890 v2 、 E7-8870 v2 、 E7-8880 v2 、 E7-8890 v2 ） | |
Cache | 12MB （ E7-4809 v2 ） |
16MB （ E7-4820 v2 ） | |
20MB （ E7-4830 v2 ） | |
24MB （ E7-4850 v2 、 E7-8850 v2 ） | |
30MB （ E7-8857 v2 、 E7-8870 v2 、 E7-4860 v2 、 E7-4870 v2 ） | |
37.5MB （ E7-4880 v2 、 E7-4890 v2 、 E7-8880 v2 、 E7-8880L v2 、 E7-8890 v2 、 E7-8891 v2 、 E7-8893 v2 ） | |
QPI bus speed | 6.4GT/s （ E7-4809 v2 ） |
7.2GT/s （ E7-4820 v2 、 E7-4830 v2 、 E7-4850 v2 、 E7-8850 v2 ） | |
8.0GT/s （ E7-4860 v2 、 E7-4870 v2 、 E7-4880 v2 、 E7-4890 v2 、 E7-8870 v2 、 E7-8880 v2 、 E7-8890 v2 、 E7-8891 v2 、 E7-8893 v2 ） | |
Chip set | Intel ®C602 chip set |
Memory | 32 memory slots; memory can be expanded to 2TB at the maximum |
Disk controller | High-performance external SAS or SAS Raid card; support SAS 12G |
RAID | Support 1/0/10/5/50/6/60 level; support 1GB/2GB/4GB cache |
Storage | Support 16 2.5” hot-plug SAS/SATA/SSD disks at the maximum |
I/O expansion slot | Motherboard provided with eight PCI-E 3.0 slots (two interior full-height full-length x8 PCI-E, two full-height and full-length x16 PCI-E and four full-height and full-length x16 PCI-E; all are full-bandwidth slots) |
Via PCIE expansion cards, it can be expanded to the following at the maximum in the chassis dimensions | |
10 PCI-E 3.0 slots | |
2 full-height half-length x4 PCI-E, 3 full-height half-length x8 PCI-E (two interior), 2 full-height half-length x16 PCI-E and 3 full-height full-length x16 PCI-E | |
12 PCI-E 3.0 slots | |
4 full-height half-length x4 PCI-E, 4 full-height half-length x8 PCI-E (two interior), 1 full-height half-length x16 PCI-E and 3 full-height full-length x16 PCI-E | |
Integrated I/O port | 前置： 2 个 USB 接口， 1 个 VGA 接口 Front installation: 2 USB interfaces and 1 VGA interface |
Back installation: four RJ45 interfaces; one RJ45 1G administration network interface; one VGA interface; four USB 2.0 interfaces and one serial port | |
Network controller | Integrated with 4 high-performance 1G network interface (2 Intel I350 network chips) |
Support network awakening, network redundancy, load balancing and other advanced network features | |
Power supply | Support four 700W platinum-level high-efficiency hot-plug power module at the maximum; optional 2 1, 2 2 or 3 1 redundancy mode |
Graphical card | Integrated with a display controler with a 16MB graphical memory (AST2300) |
DVD drive | Optional standard DVD drive |
Floppy disk drive | Virtual floppy disk drive with USB interface as the standard configuration |
Management | Support Inspur Ruijie administration set; adopt Inspur advanced server administration module; promote remote administration and diagnosis features; support IPMI1.5, IPMI2.0, WfM2.0, EMP and KVM over IP |
Supported operating systems | Microsoft Windows 2012 Enterprise 64bit |
Redhat Linux Enterprise server 6.4 64bit | |
Suse Linux 11 Enterprise server SP3 32bit/64bit | |
VMware ESXi 5.1 | |
Different operating systems are supported in different configurations. Consult with Inspur for details. | |
Working environmental temperature | 5 ℃ ～ 35 ℃ |
Mains voltage | 100-240V |
International certification | ISO9000 international quality management system |
ISO14001 international environment management system | |
Chassis dimensions | 174.8mm (H), 447.6mm (W) and 749mm (D) |
Reference weight | 42kg |
